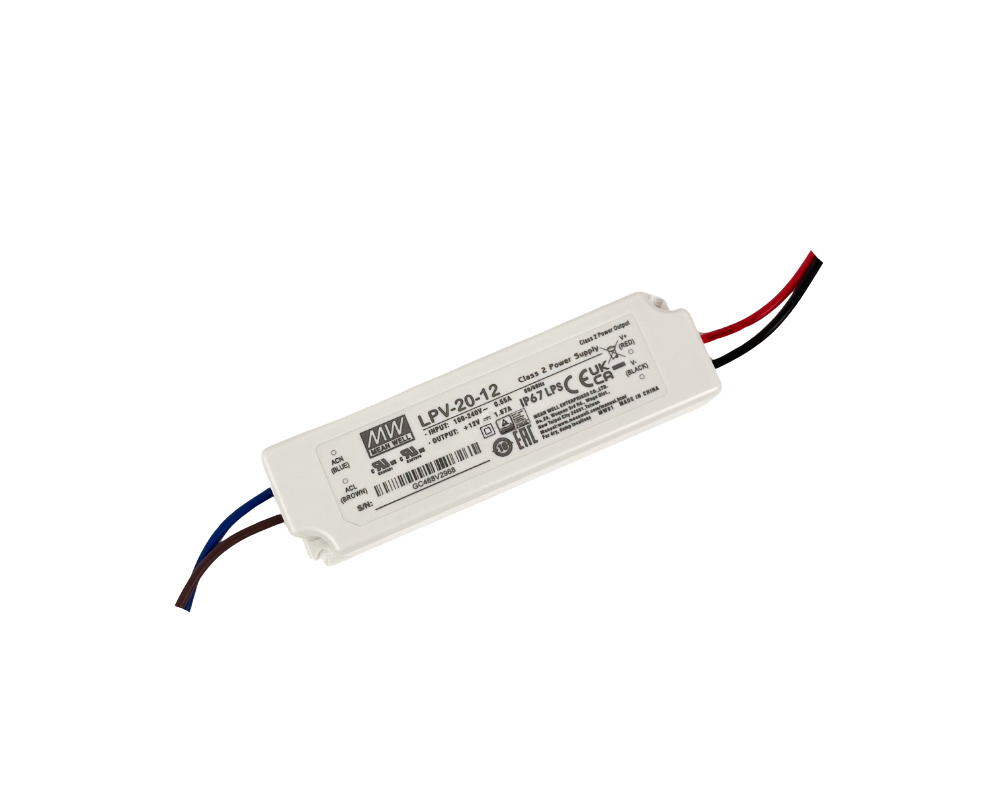

One driver is required per shelf.
-
When used with our LED shelves, this driver allows direct connection to the electrical system without any additional equipment.
-
Each shelf needs one driver.
-
Example: 1 LED shelf → 1 driver
-
Example: 5 LED shelves → 5 drivers
-
Specifications
-
Output Voltage (DC): 12V
-
Rated Current: 1.67A
-
Output Power: 20W
-
Efficiency (typ.): 81%
-
Protections: Short circuit / Overload / Overvoltage
-
IP67 rated, fully isolated plastic case
-
Dimensions: 118 × 35 × 26 mm (≈ 4.65" × 1.38" × 1.02")
-
Operating Temperature: -30°C ~ +70°C
Reliable Performance
Provides 12V DC, 20W output with 81% efficiency.
Power Requirement
One driver is required per LED shelf for proper operation.
Direct Connection
Allows direct connection to your electrical system without extra equipment.
Safety Features
Protected against short circuit, overload, and overvoltage.
Durable Design
IP67 rated waterproof plastic case ensures long-lasting durability.
Compact Size
Small and easy to install at 4.65" × 1.38" × 1.02"
